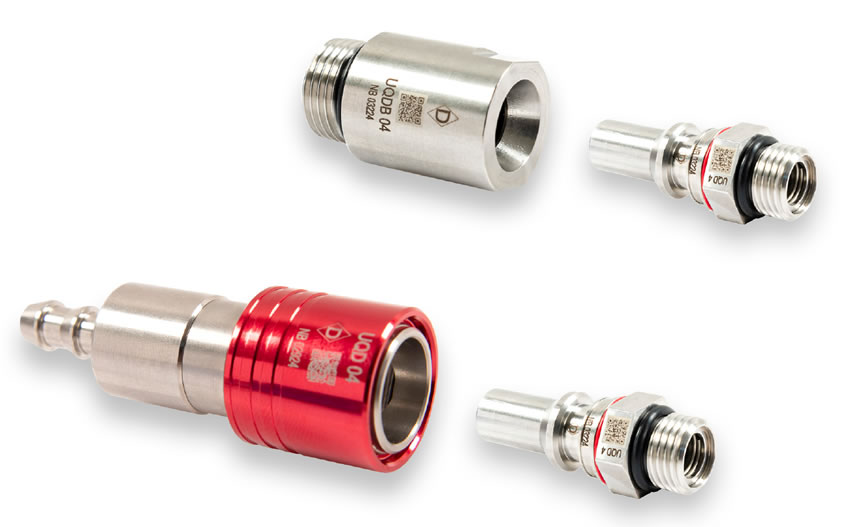

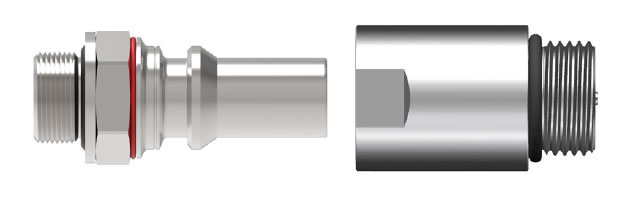

Danfoss Hansen UQD is designed (per OCP) for high flow rate and no spillage. The Universal Quick Disconnect coupling is perfect for in-rack applications with smaller hose lines. Available in 4 sizes and 2 color options. Danfoss Hansen UQDB is designed (per OCP) for high flow rate and no spillage, the Universal Quick Disconnect Blind-Mate coupling is perfect for in-rack applications where self-alignment is required due to limited accessibility. Will be available in 4 sizes.
Product Features - High flow and low pressure drop resulting in reduction in overall energy consumption. - Designed to minimize any risk of leaks that can cause costly damage downtime, and safety issues. - 100% Helium leak tested. - UQD/UQDB Manufacturing: Global manufacturing and availability.
UQD
RVL11814 Listed Part Numbers: 4UQS25HARDS11, 4UQS25HABLS11, 4UQS37HARDS11, 4UQS37HABLS11, 4UQP56ORMRD, 4UQP56ORMBL UQD Available Sizes: 1/8 ” , 1/4 ” , 3/8 ” , 1/2 ” End Connections: ORB, Hose barb, BSPP Material: SS303 + EPDM

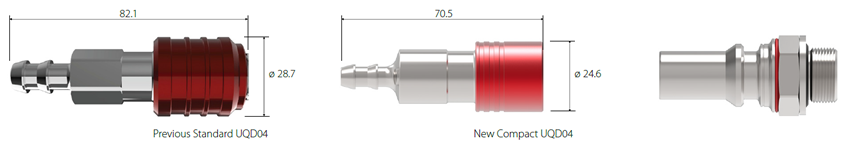

Advantages of new Compact UQD04:
- Short overall length and diameter, lessthan 26 mm to allow assembly in the server - Socket availabe in either ? "hose barbor %" hose barb option. - Force to disconnect reduced by40% by optimizing latch design from82N to 48N without pressure. - CV of new design is 1.37 (60% betterthan OCp spec). - Spillage is 10 times better than OCP spec
Features and penefits maintained from Standard version:
- Colour anodized sleeve for easy differentiation on hot ys cold line. Cleanvisibility due to full colour sleeve. - Allows connect under pressure anddisconnect under pressure up to 5 bar - 100% helium leak tested. - Desian capable to handle pressureabove 7 bar.
RVL11814 Listed Part Numbers: 4UQBS75ORM UQD Available Sizes: 1/4 ” Future Sizes: 1/8 ” , 3/8 ” , 1/2 ” End Connections: ORB Material: SS303 + EPDM
