New Size Danfoss Boston Royal EHW194 EPDM liquid cooling hose
Designed for water cooling in data centre cooling applications
Hansen hansenfluid 2025年04月27日11:54
Engineered to keep you cool
Liquid cooling is an innovative technique using water as a cooling medium to help keep computer processor temperatures low in data center applications. Danfoss designed Boston. Royal with this emerging technology in mind.
UL 94 V-0 rated and oering superior exibility and kink resistance, this hose was designed to maneuver in tight spaces to simplify installation and maintenance. Oered in a variety of sizes and colors, with approved Danfoss ttings—we have made it easy to emerge into this new market.
Markets/Applications
- Data centers
- Electronic component cooling
- Telemedicine
- Cryptocurrency mining
- IT thermal management
Sells Against
- Parker Push-Lok 801
- Parker Push-Lok 804
- Parker 627
- Parker 7092 GST II
- Parker 7395 E-Z Form GS
- Contitech FlexAGrip
Features
- UL 94 V-0 rated
- Exceeds ASTM E84 Class 1/A Requirements
- Fire resistant cover
- Smooth-finish cover, low CoF
- Multiple color offerings
- Flexible with torsional strain and kink resistance
Order Fulillment
- Made to Stock

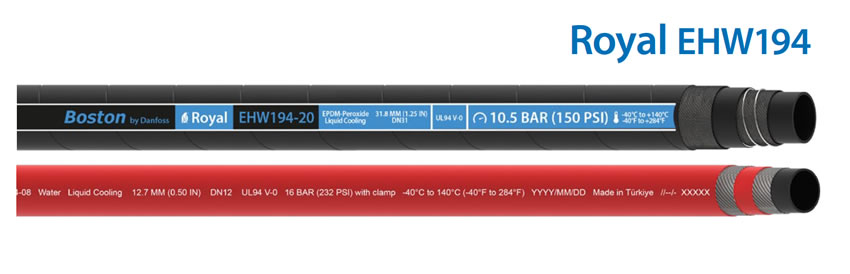

Royal EHW194 Liquid Cooling
Liquid cooling, using water as a solution, helps to eliminate the overheating of devices in data center applications

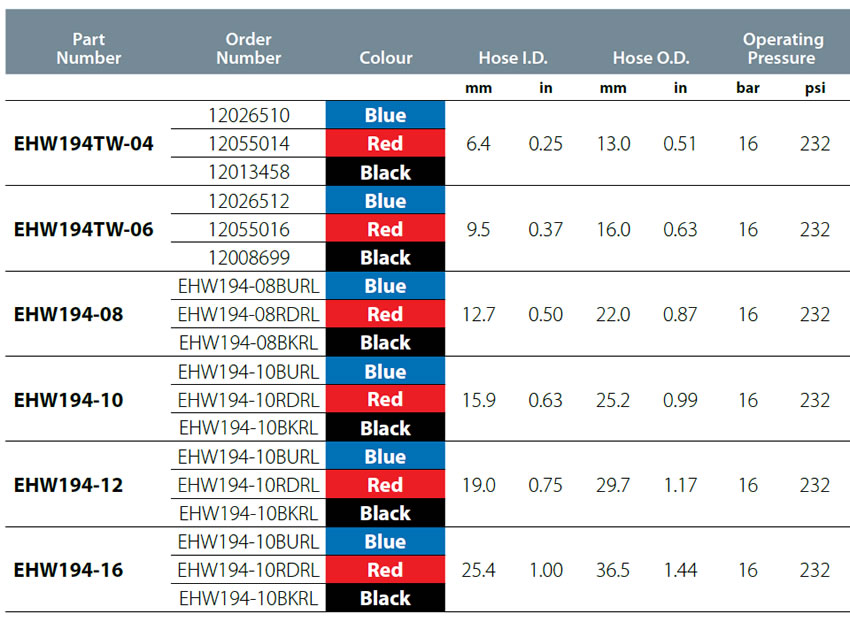

| Part Number |
Order Number |
Colour |
Hose I.D. (mm) |
Hose O.D. (mm) |
Operating Pressure (bar) |
Operating Pressure (psi) |
Burst Pressure (bar) |
Burst Pressure (psi) |
Minimum Bend Radius (mm) |
Weight (kg/m) |
Length (m) |
| EHW194TW-04 |
12026510 |
Blue |
6.4 |
13 |
16 |
232 |
48 |
696 |
25 |
0.21 |
76.2 |
| EHW194TW-04 |
12055014 |
Red |
6.4 |
13 |
16 |
232 |
48 |
696 |
25 |
0.21 |
76.2 |
| EHW194TW-04 |
12013458 |
Black |
6.4 |
13 |
16 |
232 |
48 |
696 |
25 |
0.21 |
76.2 |
| EHW194TW-06 |
12026512 |
Blue |
9.5 |
16 |
16 |
232 |
48 |
696 |
35 |
0.28 |
76.2 |
| EHW194TW-06 |
12055016 |
Red |
9.5 |
16 |
16 |
232 |
48 |
696 |
35 |
0.28 |
76.2 |
| EHW194TW-06 |
12008699 |
Black |
9.5 |
16 |
16 |
232 |
48 |
696 |
35 |
0.28 |
76.2 |
| EHW194-08 |
EHW194-08BURL |
Blue |
12.7 |
22 |
16 |
232 |
48 |
696 |
75 |
0.36 |
76.2 |
| EHW194-08 |
EHW194-08RDRL |
Red |
12.7 |
22 |
16 |
232 |
48 |
696 |
75 |
0.36 |
76.2 |
| EHW194-08 |
EHW194-08BKRL |
Black |
12.7 |
22 |
16 |
232 |
48 |
696 |
75 |
0.36 |
76.2 |
| EHW194-10 |
EHW194-10BURL |
Blue |
15.9 |
25.2 |
16 |
232 |
48 |
696 |
100 |
0.43 |
76.2 |
| EHW194-10 |
EHW194-10RDRL |
Red |
15.9 |
25.2 |
16 |
232 |
48 |
696 |
100 |
0.43 |
76.2 |
| EHW194-10 |
EHW194-10BKRL |
Black |
15.9 |
25.2 |
16 |
232 |
48 |
696 |
100 |
0.43 |
76.2 |
| EHW194-12 |
EHW194-12BURL |
Blue |
19 |
29.7 |
16 |
232 |
48 |
696 |
125 |
0.56 |
76.2 |
| EHW194-12 |
EHW194-12RDRL |
Red |
19 |
29.7 |
16 |
232 |
48 |
696 |
125 |
0.56 |
76.2 |
| EHW194-12 |
EHW194-12BKRL |
Black |
19 |
29.7 |
16 |
232 |
48 |
696 |
125 |
0.56 |
76.2 |
| EHW194-16 |
EHW194-16BURL |
Blue |
25.4 |
36.5 |
16 |
232 |
48 |
696 |
150 |
0.75 |
76.2 |
| EHW194-16 |
EHW194-16RDRL |
Red |
25.4 |
36.5 |
16 |
232 |
48 |
696 |
150 |
0.75 |
76.2 |
| EHW194-16 |
EHW194-16BKRL |
Black |
25.4 |
36.5 |
16 |
232 |
48 |
696 |
150 |
0.75 |
76.2 |

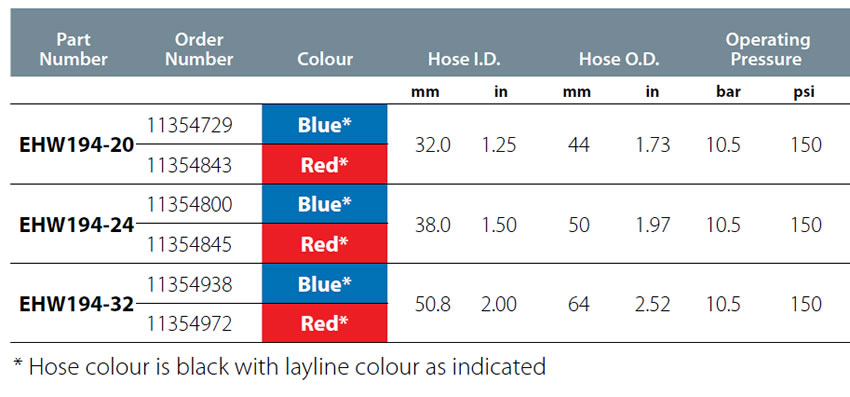

| Part Number |
Order Number |
Colour |
Hose I.D. (mm) |
Hose O.D. (mm) |
Hose O.D. (in) |
Operating Pressure (bar) |
Operating Pressure (psi) |
Burst Pressure (bar) |
Burst Pressure (psi) |
Minimum Bend Radius (mm) |
Weight (kg/m) |
Weight (lbs/ft) |
| EHW194-20 |
11354729 |
Blue* |
32 |
44 |
1.73 |
10.5 |
150 |
42 |
600 |
80 |
1.05 |
0.71 |
| EHW194-20 |
11354843 |
Red* |
32 |
44 |
1.73 |
10.5 |
150 |
42 |
600 |
80 |
1.05 |
0.71 |
| EHW194-24 |
11354800 |
Blue* |
38 |
50 |
1.97 |
10.5 |
150 |
42 |
600 |
90 |
1.21 |
0.81 |
| EHW194-24 |
11354845 |
Red* |
38 |
50 |
1.97 |
10.5 |
150 |
42 |
600 |
90 |
1.21 |
0.81 |
| EHW194-32 |
11354938 |
Blue* |
50.8 |
64 |
2.52 |
10.5 |
150 |
42 |
600 |
120 |
1.75 |
1.18 |
| EHW194-32 |
11354972 |
Red* |
50.8 |
64 |
2.52 |
10.5 |
150 |
42 |
600 |
120 |
1.75 |
1.18 |
Construction
Tube: Peroxide-cured, zinc free,synthetic EPDM rubber
Reinforcement: 2 -ply textile
Cover: Fire retardant, Peroxide-cure Synthetic EPDM Rubber
Colors:Black (BK), Blue (BU),Red (RD)
100% Sulfur free construction
Max/Min Intermittent Operating Temperature: -40°C to +140°C (-40°F to +284°F)
Certifications: UL 94 V-0
Exceeds ASTM E84 Class 1/A Requirements
Packaging: 76.2m (250 ft.) Reel
Qualified connections
- Danfoss 1G crimp fittings
- Danfoss 100B socketless fittings
- Danfoss Hansen UQD
- Danfoss Hansen FD83
Royal EHW194 Liquid Cooling
Liquid cooling, using water as a solution, helps to eliminate the overheating of devices in data center applications.
Construction
Tube: Peroxide-cured, zinc free,synthetic EPDM rubber
Reinforcement: 2 -ply textile 1 helical wire
Cover: Fire retardant, Peroxide-cure Synthetic EPDM Rubber
100% Sulfur free construction
Colors: Blue, Red (Layline)
Max/Min Intermittent Operating Temperature: -40°C to +140°C (-40°F to +284°F)
Certifications: UL 94 V-0 rated
Packaging: 61m (200ft.) coil
Qualified connections
- Danfoss 1G crimp fittings
- Danfoss Hansen FD83 hose barb couplings
- Danfoss EHW194 hose barb fttings
|
