Danfoss DC394 Flexible Hose Series
A hose designed specifically for liquidcooling datacenters, so it works for your system, not against it.Meet the new the Aeroquip? by Danfoss DataCryo DC394. It's a high-performance channeled hose built for quick installation and leak-free reliability in large-diameter source lines.
As systems scale, conventional hoses get stiff and kink-prone. DC394 uses engineered channeled construction for low bending force, exceptional flexibility and strong kink resistance, with a one-to-one bend radius that outperforms alternatives. That means easier routing, faster maintenance, and better pressure drop.
It features a peroxide-cured EPDM tube and cover for fluid purity, 100 percent sulfur-free construction to reduce corrosion, and a 100 percent halogen-free, UL 94 V-0 rated cover for fire resistance.DC394 leads our new DataCryo line, unifying all DanfossDataCenter hoses.
Available in:
-Sizes -16 to -64 to support different system architectures and flow requirements.
-In blue or red laylines for simple identification of supply and return lines.
-A working pressure of 150 psi (10.5 bar) and operating temperature of -40°F to 284°F (-40°C to 140°C).
Description
UL 94 V-0 rated and offering highest flexibility and kink resistance,this hose is designed for large size applications in liquid cooled DataCenters.
Extreme flexibility to maneuver in tight spaces to simplify installationand maintenance.
Offered in an updated variety of sizes from 1" up to 4", withapproved Danfoss crimp fittings.
Value Proposition
- UL 94 V-0 rated - fire resistant cover
- Channeled cover for best-in-class flexibility with improved bending radius and force-to-bend
-Low coefficient of friction for reduced pressure drop and high flow
- Multiple Layline color offerings
- Temperature range: -40°C to 140°C (-40°F to 284°F)
- Manufacturing: Turkiye-> Stocked in US, EMEA, China
Available in sizes
-16,-20,-24,-32,-40,-48,-64

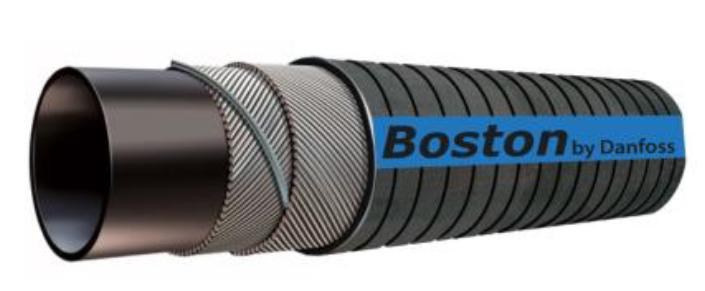

Material
Tube: Peroxide-cured EPDM Rubber
Reinforcement: Textile fabric with steel wire helix
Cover: Fire retardant Channeled EPDM-P Rubber
Colors
Black (BK) with blue and red identification lay line color
Qualified fitting
Danfoss 1G crimp fittings
How to order / part no.
| Size |
Hose I.D. (mm) |
Hose I.D. ( inch ) |
Hose O.D. (mm) |
Hose O.D. (in) |
Operating Pressure (bar) |
Operating Pressure (psi) |
Burst Pressure (bar) |
Burst Pressure (psi) |
Minimum Bend Radius (mm) |
Minimum Bend Radius (in) |
| DC394-16 |
25.4 |
1 |
37 |
1.45 |
10.5 |
152.3 |
42 |
609.1 |
25.4 |
1 |
| DC394-20 |
31.8 |
1.25 |
43 |
1.69 |
10.5 |
152.3 |
42 |
609.1 |
32 |
1.25 |
| DC394-24 |
38.1 |
1.5 |
49 |
1.92 |
10.5 |
152.3 |
42 |
609.1 |
38 |
1.49 |
| DC394-32 |
50.8 |
2 |
63 |
2.48 |
10.5 |
152.3 |
42 |
609.1 |
51 |
2 |
| DC394-40 |
63.5 |
2.5 |
77 |
3.03 |
10.5 |
152.3 |
42 |
609.1 |
80 |
3.14 |
| DC394-48 |
76.2 |
3 |
90 |
3.54 |
10.5 |
152.3 |
42 |
609.1 |
95 |
3.74 |
| DC394-64 |
101.6 |
4 |
116 |
4.56 |
10.5 |
152.3 |
42 |
609.1 |
128 |
5.03 |
|
