丹佛斯不锈钢90度旋转接头 12290KSW-20-24FASR

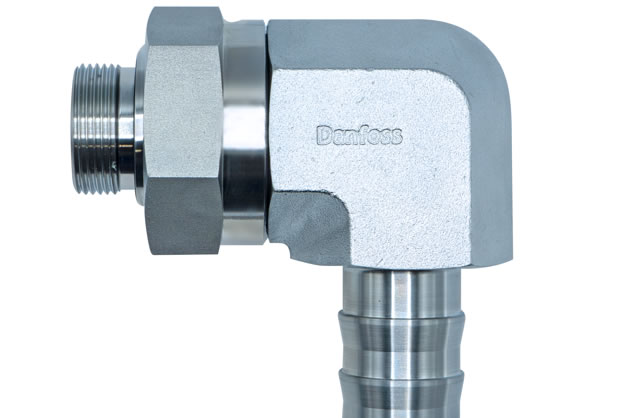

Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Danfoss 90° Swivel Adapters 12290KSW-20-24FASR
丹佛斯Danfoss FF4514 和 FF4521 型 90 度旋转接头专门为液冷软管组件连接而开发。
具备旋转功能，连接轻松快捷；
适用于不同尺寸的软管和端口螺纹；304 不锈钢材质，可与多种流体兼容；
标准密封材料：三元乙丙橡胶（EPDM），如有需要可提供其他材料；
工作温度范围：最低 - 3°C（26.6°F），最高 60°C（140°F）；所有生产部件均经过氦气泄漏测试；带有与生产相关的二维码，便于追溯。
Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Fact sheet Danfoss FF4514 and FF4521 90° Swivel Adapter Families
丹佛斯 FF4514 和 FF4521 90° 旋转接头专为液冷软管总成连接而开发。
- 旋转功能，连接方便快捷
- 适用于不同的软管尺寸和端口螺纹
- 304 不锈钢材料提供广泛的流体兼容性
- 标准密封材料：EPDM，可根据要求
提供其他材料 - 工作温度范围：最低 -3°C （26.6°F），最高 60°C （140°F）
- 100% 的生产部件经过氦气泄漏测试
- 与生产相关的二维码，便于追溯
Fact sheet > Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Danfoss FF4514 and FF4521 swivel adapter families are The swivelling feature allows an easy and fast installation specifically developed for liquid cooling hose assembly of cooling lines to the rack manifold also in tight connection to data center server rack manifolds. environment.
Product Features
- Swivelling functionality for easy and fast connection
- Available for different hose sizes and port threads
- 304 stainless steel material provides broad fluid compatibility
- Standard seal material: EPDM, additional material available on request
- Operation temperature range: -3°C min (26.6°F), 60°C max (140°F)*
- 100% of production parts are helium leakage tested
- Production related QR code for easy traceability
2 | . Danfoss | Produced by Power Solutions I October 2025 AM514047778213en-000102
Fact sheet > Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Physical characteristics
Part Max. operating Max. proof Min. burst Seal
Number pressure pressure pressure Materials
FF4514-2032-568 10 bar 17 bar 21 bar EPDM&EPR
FF4514-2024-568 10 bar 17 bar 21 bar EPDM&EPR
FF4514-3232-568 10 bar 17 bar 21 bar EPDM&EPR
FF4521-1616-568 10 bar 17 bar 21 bar EPDM&EPR
Applications & Markets
-Data Centers
- Thermal Management Systems
Figure 1 Figure 2
Dimensions
Fig. A B C S1S2
Part number Hose barb Size Port Thread n° (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in)
FF4514-2024-568 -24 G1.1/4-11 ISO1179-2 BSPP 1 20.0 0.79 84.5 3.33 104.0 4.09 70.0 2.76 65.0 2.56
FF4514-2032-568 -32 G1.1/4-11 ISO1179-2 BSPP 1 20.0 0.79 84.5 3.33 113.0 4.45 70.0 2.76 65.0 2.56
FF4514-3232-568 -32 G2-11 ISO1179-2 BSPP 1 24.0 0.94 84.5 3.33 113.0 4.45 75.0 2.95 65.0 2.56
FF4521-1616-568 -16 G1-11 ISO1179-2 BSPP 2 18.0 0.71 28.0 1.10 65.3 2.57 - - 41.0 1.61
3 | . Danfoss | Produced by Power Solutions I October 2025 AM514047778213en-000102
Explore our solutions danfoss.com
Danfoss丹佛斯签约中国经销商：北京汉深流体技术有限公司
地址：北京朝阳区望京 SOHO-T1-C 座 2115 室 邮编：100102手机：139 1096 2635 电子邮件：sales@cnmec.biz
Any information, including, but not limited to information on selection of product, its application or use, product design, weight, dimensions, capacity or any other technical data in product manuals, catalogues descriptions, advertise-ments, etc. and whether made available in writing, orally, electronically, online or via download, shall be considered informative, and is only binding if and to the extent, explicit reference is made in a quotation or order confirmation. Danfoss cannot accept any responsibility for possible errors in catalogues, bro-chures, videos and other material. Danfoss reserves the right to alter its products without notice. This also applies to products ordered but not delivered provided that such alterations can be made without changes to form, fit or function of the product. All trademarks in this material are property of Danfoss A/S or Danfoss group companies. Danfoss and the Danfoss logo are trademarks of Danfoss A/S. All rights reserved.
Danfoss A/S
Nordborgvej 81 6430 Nordborg Denmark danfoss@danfoss.com CVR reg. no. 20165715
. Danfoss 2025

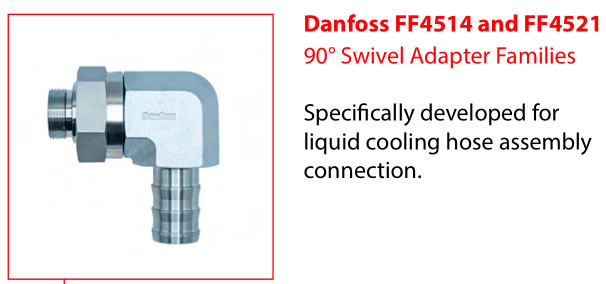

Danfoss FF4514 and FF4521 90° Swivel Adapters
90° Swivel Adapter Families
Specically developed for liquid cooling hose assembly connection.
- Swivelling functionality for easy and fast connection
- Available for different hose sizes and port threads
- 304 stainless steel material provides broad fluid compatibility
- Standard seal material: EPDM, additional material available on request
- Operation temperature range: -3°C min (26.6°F),60°C max (140°F)
- 100% of production parts are helium leakage tested
- Production related QR code for easy traceability

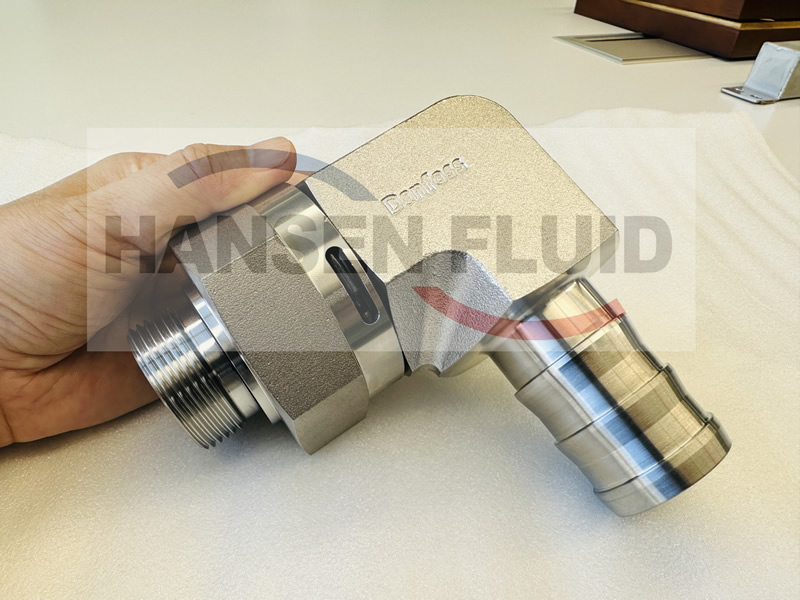

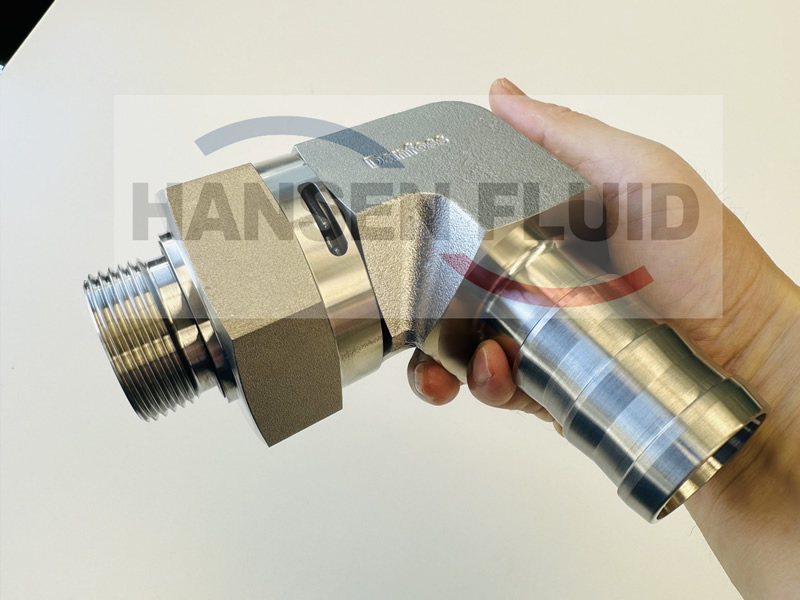

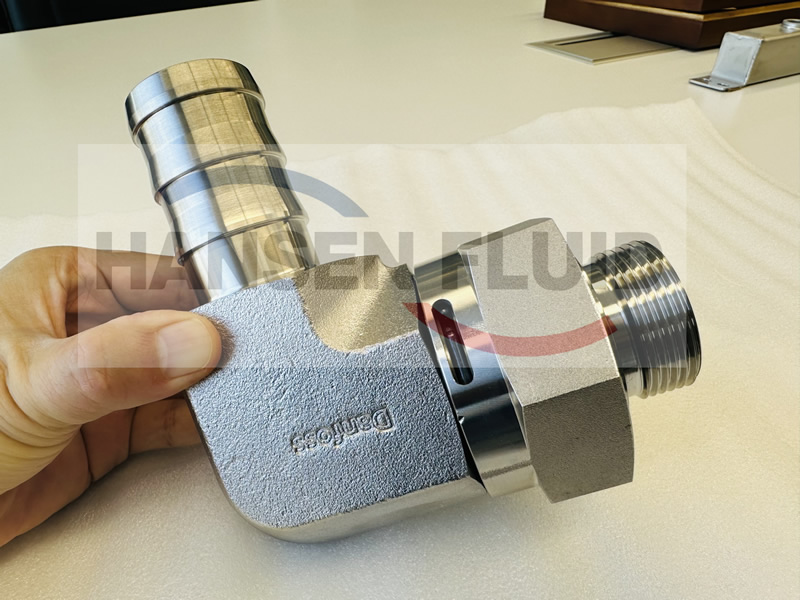

丹佛斯不锈钢接头 12290KSW-20-24FASR
Danfoss FF4514 and FF4521 90° Swivel Adapter
丹佛斯不锈钢接头 12290KSW-20-24FASR
Danfoss FF4514 and FF4521 90° Swivel Adapter
丹佛斯不锈钢接头 12290KSW-20-24FASR
Danfoss FF4514 and FF4521 90° Swivel Adapter

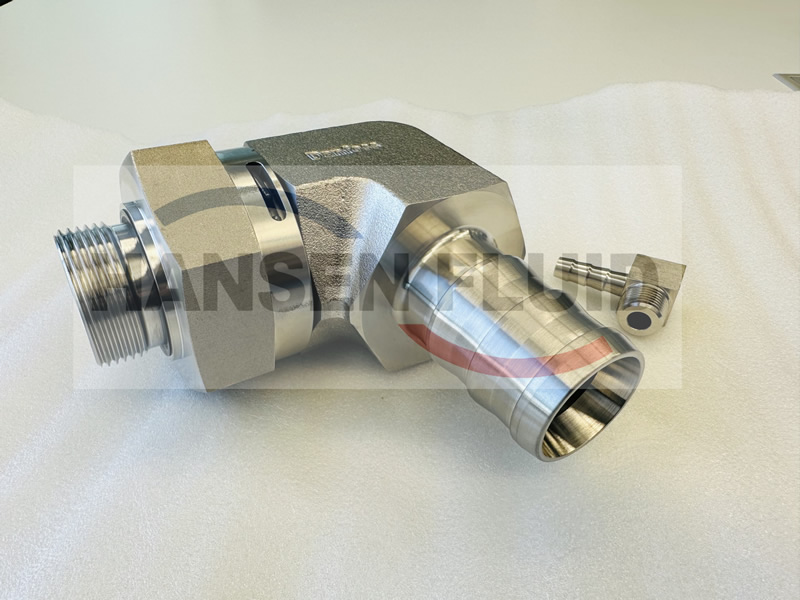

Danfoss FF4514 and FF4521 90° Swivel Adapter Winner Part number SAP PN Danfoss PN
12290KSW-32-32FASR； 12023844 ；FF4514-3232-568
12290KSW-20-32FASR；12023848 ；FF4514-2032-568
12290KSW-20-24FASR； 12025953； FF4514-2024-568
AM514047778213en-000102
Fact sheet > Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Physical characteristics
Part Max. operating Max. proof Min. burst Seal
Number pressure pressure pressure Materials
FF4514-2032-568 10 bar 17 bar 21 bar EPDM&EPR
FF4514-2024-568 10 bar 17 bar 21 bar EPDM&EPR
FF4514-3232-568 10 bar 17 bar 21 bar EPDM&EPR
FF4521-1616-568 10 bar 17 bar 21 bar EPDM&EPR
Fact sheet Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Fact sheet > Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Danfoss FF4514 and FF4521 swivel adapter families are The swivelling feature allows an easy and fast installation specifically developed for liquid cooling hose assembly of cooling lines to the rack manifold also in tight connection to data center server rack manifolds. environment.
Product Features
- Swivelling functionality for easy and fast connection
- Available for different hose sizes and port threads
- 304 stainless steel material provides broad fluid compatibility
- Standard seal material: EPDM, additional material available on request
- Operation temperature range: -3°C min (26.6°F), 60°C max (140°F)*
- 100% of production parts are helium leakage tested
- Production related QR code for easy traceability
2 | . Danfoss | Produced by Power Solutions I October 2025 AM514047778213en-000102
Fact sheet > Danfoss FF4514 and FF4521 90° Swivel Adapter Families
Physical characteristics
Part Max. operating Max. proof Min. burst Seal
Number pressure pressure pressure Materials
FF4514-2032-568 10 bar 17 bar 21 bar EPDM&EPR
FF4514-2024-568 10 bar 17 bar 21 bar EPDM&EPR
FF4514-3232-568 10 bar 17 bar 21 bar EPDM&EPR
FF4521-1616-568 10 bar 17 bar 21 bar EPDM&EPR
Applications & Markets
-Data Centers
- Thermal Management Systems
Figure 1 Figure 2
Dimensions
Fig. A B C S1S2
Part number Hose barb Size Port Thread n° (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in)
FF4514-2024-568 -24 G1.1/4-11 ISO1179-2 BSPP 1 20.0 0.79 84.5 3.33 104.0 4.09 70.0 2.76 65.0 2.56
FF4514-2032-568 -32 G1.1/4-11 ISO1179-2 BSPP 1 20.0 0.79 84.5 3.33 113.0 4.45 70.0 2.76 65.0 2.56
FF4514-3232-568 -32 G2-11 ISO1179-2 BSPP 1 24.0 0.94 84.5 3.33 113.0 4.45 75.0 2.95 65.0 2.56
FF4521-1616-568 -16 G1-11 ISO1179-2 BSPP 2 18.0 0.71 28.0 1.10 65.3 2.57 - - 41.0 1.61
Series Material Number Description Smart Part Number Type
90° Swivel Adapters 12023844 Elbow Swivel Adapter,-32-32,304,EPR FF4514-3232-568 Adapter
90° Swivel Adapters 12023848 Elbow Swivel Adapter, -20-32,304,EPR FF4514-2032-568 Adapter
90° Swivel Adapters 12025953 Elbow Swivel Adapter, -20-24,304,EPR FF4514-2024-568 Adapter
Series Material Number Description Smart Part Number Type
90° Swivel Adapters 12023844 Elbow Swivel Adapter,-32-32,304,EPR FF4514-3232-568 Adapter
90° Swivel Adapters 12023848 Elbow Swivel Adapter, -20-32,304,EPR FF4514-2032-568 Adapter
90° Swivel Adapters 12025953 Elbow Swivel Adapter, -20-24,304,EPR FF4514-2024-568 Adapter
12290KSW-32-32FASR 12023844 FF4514-3232-568
12290KSW-20-32FASR 12023848 FF4514-2032-568
12290KSW-20-24FASR 12025953 FF4514-2024-568
Series Material Number Description Smart Part Number Type
90° Swivel Adapters 12023844 fitting-nipple FF4514-3232-568 Adapter
90° Swivel Adapters 12023848 fitting-nipple FF4514-2032-568 Adapter
90° Swivel Adapters 12025953 elbow fittings FF4514-2024-568 Adapter
3 | . Danfoss | Produced by Power Solutions I October 2025 AM514047778213en-000102
