Danfoss Hansen. Universal Quick Disconnect Blind-Mate (UQDB)
One partner, every solution

Danfoss Hansen. Universal Quick Disconnect Blind-Mate (UQDB)

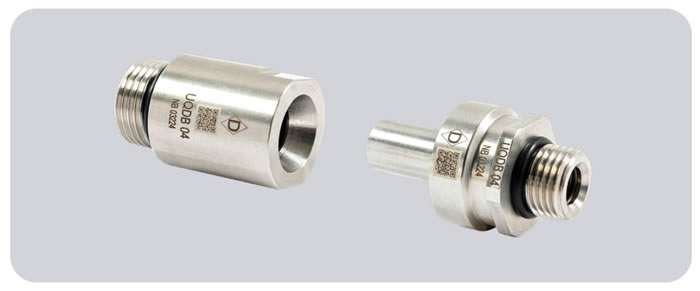

Danfoss Hansen Universal Quick Disconnect Blind-Mate (UQDB) has been designed with OCP (Open Compute Project) community to set industry standard for thermal management application in data centers. This quick disconnect coupling is available in 4 dierent sizes (as the UQD: -02/-04/-06/-08) and complies with OCP specication requirements. Danfoss UQDB oers a self-alignment feature to help connect in location with limited access or visibility and guarantees 100% helium-leak testing on every coupling.

Features and Benefits

- Designed per OCP UQDB specications
-“Blind-connection” thanks to self- alignment feature with radial compensation of 1 mm
- Push-to-connect design
- Direct connection between servers and manifolds
- High ow and reduced pressure drop for an improved system eciency
- Flat-face dry break design to avoid spillage during connection/ disconnection
- Sizes available: -02/-04/-06/-08
- High reliability and 100% helium-leak tested
- Standard material: 303 stainless steel for excellent corrosion resistance
- Standard seal material: EPDM for excellent uid com-patibility
- Terminal ends are ORB
- Operating temperature: 10°C - 65°C (50°F - 149°F)
- Working pressure: min. 10 bar
- QR code marking to help identify and track produc-tion parts

Solutions to your liquid cooling challenges

Inner Rack Solutions

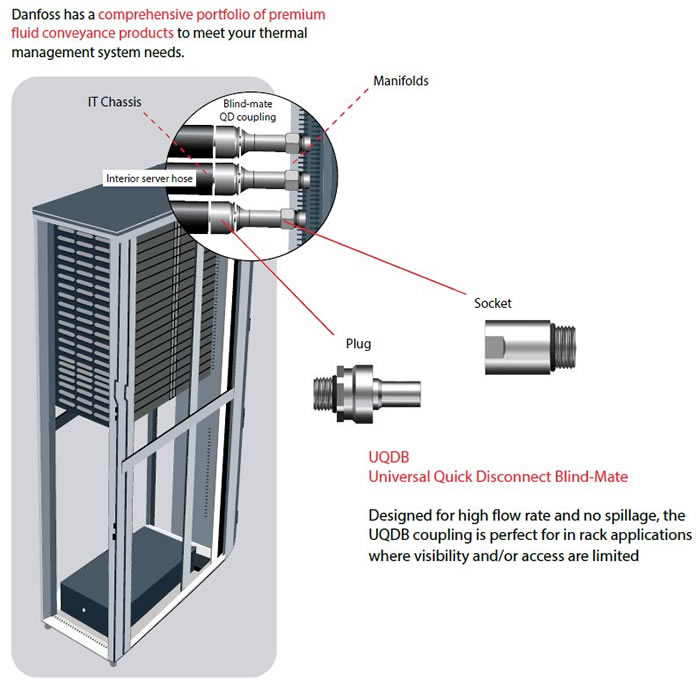

Danfoss’ direct-to-chip cooling solutions extend into the racks through ecient routing of exible, kink-free hoses, and leak free, helium-tested couplings. Danfoss has a comprehensive portfolio of premium fluid conveyance products to meet your thermal management system needs.

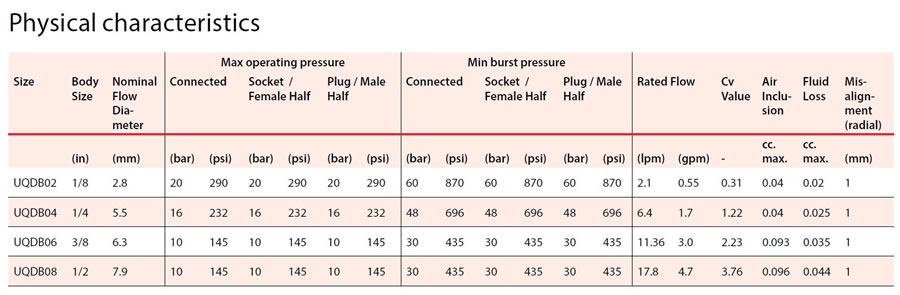

Physical characteristics
Max operating pressure Size Body Nominal
Connected Socket / Plug / Male Size Flow
Female Half Half Dia- meter
(in) (mm) (bar) (psi) (bar) (psi) (bar) (psi)
UQDB02 1/8 2.8
20 290 20 290 20 290 UQDB04 1/4 5.5
16 232 16 232 16 232 UQDB06 3/8 6.3
10 145 10 145 10 145 UQDB08 1/2 7.9
10 145 10 145 10 145
Min burst pressure Connected Socket / Plug / Male Female Half Half
(bar) (psi) (bar) (psi) (bar) (psi)
60 870 60 870 60 870 48 696 48 696 48 696 30 435 30 435 30 435 30 435 30 435 30 435
Rated Flow Cv Air Fluid
Value Inclu- Loss
sion

Mis-align-ment (radial)
cc. cc. (lpm) (gpm) -max. max. (mm)
2.1 0.55 0.31 0.04 0.02 1 6.4 1.7 1.22 0.04 0.025 1 11.36 3.0 2.23 0.093 0.035 1 17.8 4.7 3.76 0.096 0.044 1

Applications & Markets
- Direct-to-chip liquid cooling
- Thermal management

Seal Elastomer Data
Seal Elastomer EPDM
-40°C +150°C, -40°F +302°F

.

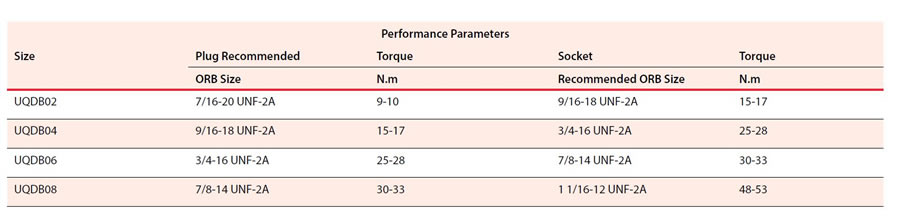

Performance Parameters Size Plug Recommended Torque Socket Torque
ORB Size N.m Recommended ORB Size N.m
UQDB02 7/16-20 UNF-2A 9-10 9/16-18 UNF-2A 15-17
UQDB04 9/16-18 UNF-2A 15-17 3/4-16 UNF-2A 25-28
UQDB06 3/4-16 UNF-2A 25-28 7/8-14 UNF-2A 30-33
UQDB08 7/8-14 UNF-2A 30-33 1 1/16-12 UNF-2A 48-53

Figure 1 Socket Figure 2 Plug

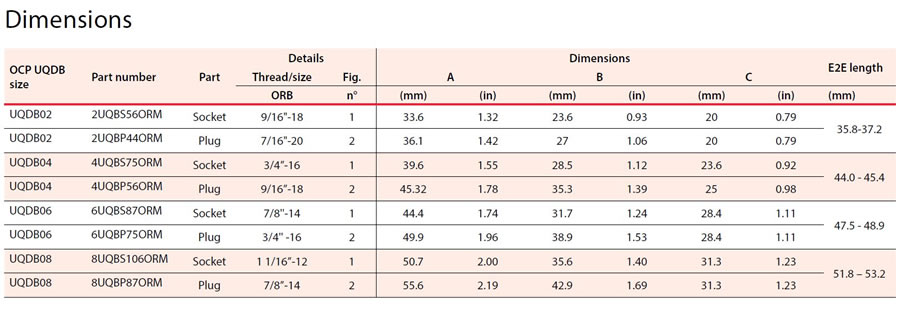

Dimensions
Details Dimensions
OCP UQDB size Part number Part Thread/size Fig. A B C E2E length
ORB n° (mm) (in) (mm) (in) (mm) (in) (mm)

UQDB02 2UQBS56ORM
UQDB02 2UQBP44ORM
UQDB04 4UQBS75ORM
UQDB04 4UQBP56ORM
UQDB06 6UQBS87ORM
UQDB06 6UQBP75ORM
UQDB08 8UQBS106ORM
UQDB08 8UQBP87ORM
