丹佛斯推出 CoolTrain，加速液冷系统的部署
Danfoss Unveils CoolTrain to Accelerate Deployment of Liquid Cooling Systems
2026年3月26日 作者：凯琳·沃尔芬登
随着人工智能和高密度计算推动向液冷的强制性转变，CoolTrain 取代了缓慢、高风险的现场组装，采用即插即用解决方案，保证质量，加快项目进度，并从一开始就优化系统性能。
丹佛斯自豪地宣布推出丹佛斯 CoolTrain，这是一款模块化的预制和工厂测试的阀系子系统，旨在解决直接芯片液冷中能源效率和部署风险的关键挑战。
随着人工智能和高密度计算推动向液冷的强制性转变，CoolTrain 取代了缓慢、高风险的现场组装，采用即插即用解决方案，保证质量，加快项目进度，并从一开始就优化系统性能。
传统的现场液冷系统组装是造成效率低下的主要原因。手动组装的系统通常无法实现动态水力平衡，导致水泵过度运转，造成持续且大量的能源浪费。此外，这种方法速度慢、容易出错，并且存在泄漏和污染的风险，从而危及数据中心的正常运行。
“我们看到了客户面临的巨大压力。他们需要快速、大规模地部署液冷系统，但传统方法却因风险和低效而阻碍了他们的进展。CoolTrain 正是我们针对这一问题推出的解决方案。它以工厂保证的确定性取代了现场的各种不确定因素。我们希望帮助工程师们采用智能流程，并确保他们的系统从连接之日起就高效且防泄漏。
”
–Moath Shanaah，丹佛斯土耳其、中东和非洲数据中心业务发展经理

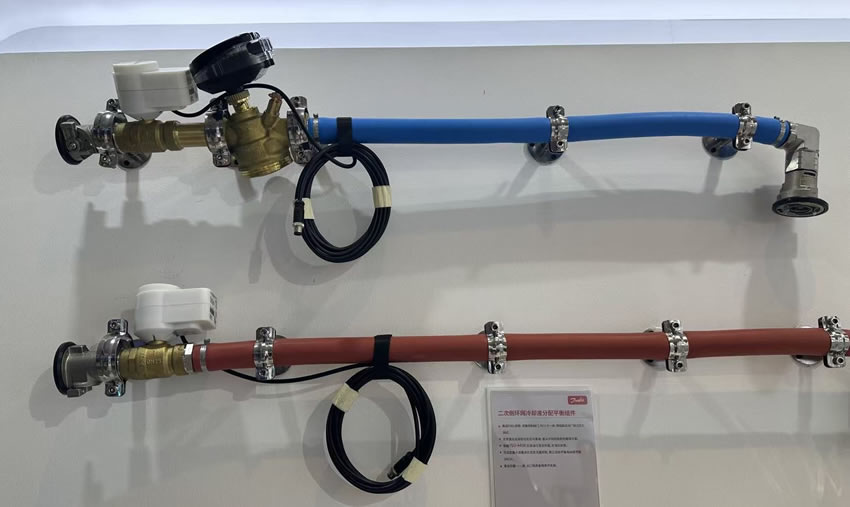

丹佛斯 CoolTrain 是一款模块化、定制设计的子系统，可在机房主 TCS 冷却回路和服务器机架之间建立无缝连接。通过将组装流程转移到受控的工厂环境中，每个单元在交付到现场之前都已完成压力测试、内部清洁（符合 ISO 认证标准）、预充冷却液并密封。这种“现场密封”方案将每个机架的安装时间从数小时缩短至几分钟，并消除了冷却系统故障的主要原因。
核心创新和技术优势:
CooITrain”将丹佛斯多项市场领先的技术集成到一个解决方案中，从而带来可衡量的性能提升:
- 专为可靠性而设计:采用市场领先的FD83互锁式接头和高柔韧性的EHW194 Boston软管，最大限度降低泄漏风险。与冷却液接触的阀门材料具有耐腐蚀性，并通过了严格的兼容性测试，确保安全、长期运行。
- 智能动态平衡:其核心是集成的AB-QM压力无关控制阀(PICV)，可实现自动、连续的水力平衡。它不断优化冷却液流量，以满足每个机架的特定需求，从而确保最高的能源效率，并优化电源使用效率(PUE)和提高用水效率(WUE)。
- 数字化智能与控制:配备可选的NovoCon S数字执行器后，CooITrainM即可成为DCIM中的智能数据源。它提供流量和温度的实时遥测数据，从而实现远程优化以匹配实际IT负载，并有助于制定预测性维护计划，最大限度地延长正常运行时间。
丹佛斯 CoolTrainT技术规格概述:
- 连接方式:1英寸 |DN25，配备市场领先的互锁式安全接头
- 流量范围:2.2-22加仑/分钟 | 8.3-83升/分钟(10-100%预设值
- 最大工作压力:145 psi 10bar
- 关闭泄漏率:ISO5208A级 (零泄漏)
- 工作温度:59-149°F | 15-65°C
- 工厂清洁度标准:ISO4406
- 冷却能力:55kW，支持高达65kW的高密度机架(温差AT=10K)
 |

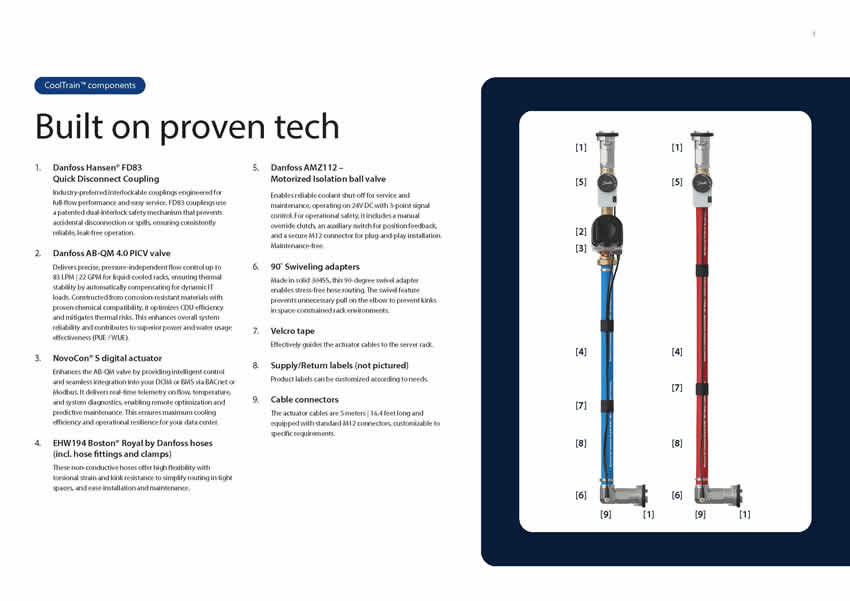

CoolTrain组件
基于成熟技术构建
1.丹佛斯汉森FD83快速断开接头
业内首选的可互锁联轴器，专为全流量性能及便捷维护而设计。FD83联轴器采用一项专利的双联互锁安全机制，可有效防止意外断开或泄漏，从而确保始终保持稳定、无泄漏的运行状态
2. 丹佛斯AB-QM 4.0 PICV阀门
该产品可实现精确且不受压力影响的流量控制，最高可达83LPM(22GPM)，适用于液冷式机架，通过自动补偿动态IT负载来确保热稳定性。它采用耐腐蚀材料制成，并具备经过验证的化学兼容性，从而能够优化CDU效率并降低热风险。这提升了整个系统的可靠性，并有助于实现卓越的电能和水能使用效率(PUE/WUE)
3.NovoCon S 数字执行器
通过提供智能控制功能并将其无缝集成至您的DCIM或BMS系统G通过BACnet至Modbus 协议实现)，这款AB-QM阀门得以得到提升。它能够实时提供关于流量、温度及系统诊断情况的遥测信息，从而支持远程优化和预测性维护。这确保了数据中心能够获得最高的冷却效率及运行韧性:
4.Danfoss品牌的EHW194 Boston Royal软管(含软管接头和夹具)
这些非导电软管具有高柔韧性，抗扭和抗弯折性能强，可简化在狭小空间内的布线，并便于安装和维护。
5.Danfoss AMZ112 电动隔离球阀
该装置能够确保在维修和保养过程中实现可靠的冷却液切断功能，其工作电压为24V DC，采用三点信号控制方式。为确保操作安全，它还配备了手动应急离合器、用于位置反馈的辅助开关以及安全的M12连接器，便于插接式安装。免维护设计。
6.90°旋转适配器
采用坚固的30455材质制造，这款90度旋转接头可实现无应力的软管布线。其旋转功能防止肘部不必要的拉扯，从而避免在空间受限的机架环境中产生弯折。
7.魔术贴胶带:
有效引导执行器电缆至服务器机架。
8.供回水标签
(未图示)产品标签可根据需求定制。
9.电缆连接器执行器电缆
长度为5米|16.4英尺，配备标准M12连接器，可根据特定需求定制。

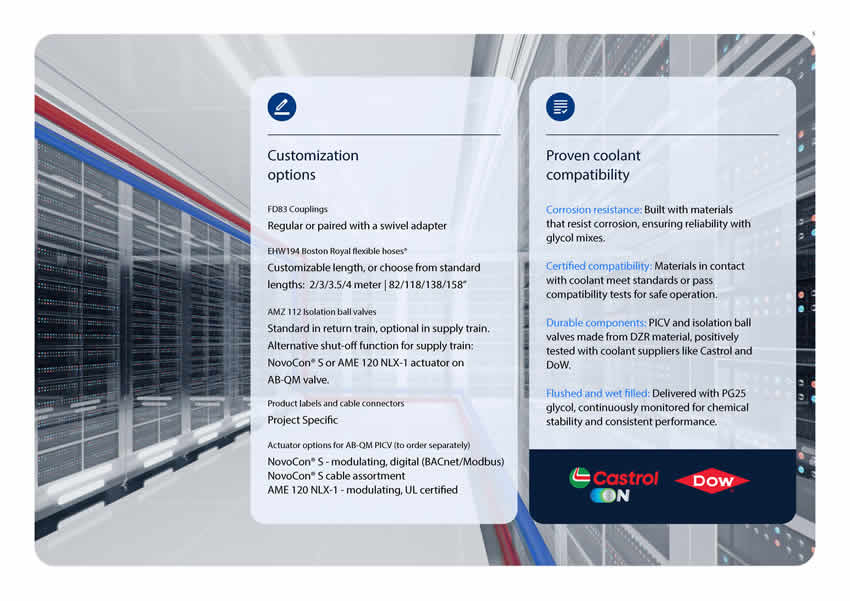

Customization options
FD83 Couplings
Regular or paired with a swivel adapter
EHW194 Boston Royal flexible hoses
Customizable length, or choose from standardlengths: 2/3/3.5/4 meter|82/118/138/158"
AMZ 112 Isolation ball valves
Standard in return train, optional in supply train.Alternative shut-off function for supply train:NovoCon S or AME 120 NLX-1 actuator onAB-QM valve.
Product labels and cable connectors
Project Specific
Actuator options for AB-QM PICV (to order separately)
NovoCon S- modulating, digital (BACnet/Modbus)
NovoCon S cable assortment
AME 120 NLX-1 - modulating, UL certified
|
Danfoss Unveils CoolTrain to Accelerate Deployment of Liquid Cooling Systems
March 26, 2026
Author: Kay-Lyne Wolfenden
As AI and high-density computing drive the mandatory shift to liquid cooling, the CoolTrain replaces slow, high-risk, on-site assembly with a plug-and-play solution that guarantees quality, accelerates project timelines, and optimizes system performance from day one.
Danfoss is proud to announce the launch of the Danfoss CoolTrain, a modular pre-engineered and factory-tested valve train subsystem designed to address the critical challenges of energy efficiency and deployment risk in direct-to-chip liquid cooling.
As AI and high-density computing drive the mandatory shift to liquid cooling, the CoolTrain replaces slow, high-risk, on-site assembly with a plug-and-play solution that guarantees quality, accelerates project timelines, and optimizes system performance from day one.
The traditional on-site assembly of liquid cooling systems is a primary source of inefficiency. Manually assembled systems are often not dynamically hydronic balanced, leading to significant and constant energy waste from pumps working harder than necessary. Furthermore, this method is slow, prone to errors, and introduces risks of leaks and contamination, which can jeopardize data center operations.
“We saw the immense pressure our customers are under. They need to deploy liquid cooling fast and at scale, but the traditional methods are holding them back with risks and inefficiency. The CoolTrain is our direct answer to this. It’s about replacing on-site variables with factory-guaranteed certainty. We want to empower engineers to go with the smart flow, confident that their system is efficient and leak-proof from the moment it’s connected.”
– Moath Shanaah, Data Center Business Development Manager at Danfoss – Türkiye, Middle East and Africa

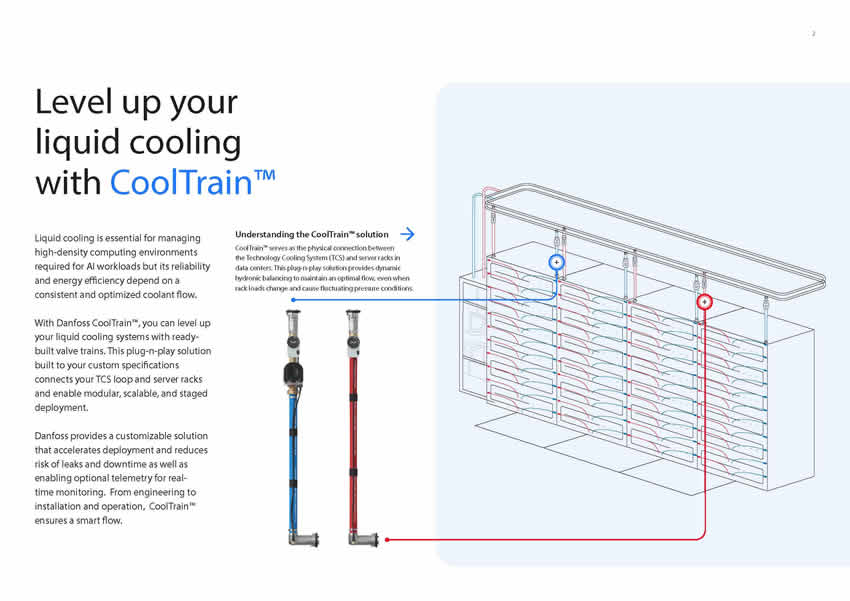

The Danfoss CoolTrain is a modular, custom-engineered subsystem that creates a seamless bridge between the facility’s main TCS cooling loops and the server racks. By moving the assembly process into a controlled factory environment, each unit is delivered to the site already pressure-tested, internally cleaned to certified ISO standards, pre-filled with coolant and hermetically sealed. This “sealed-for-site” approach reduces installation time from hours per rack to mere minutes and eliminates the primary cause of cooling system failures.
Core Innovations and Technical Benefits:
The CoolTrain integrates a number of Danfoss’s market-leading technologies into one solution to deliver measurable performance gains:
Engineered for Reliability: Established with market-leading FD83 interlockable coupling and highly flexible EHW194 Boston hoses to minimize the risk of leakage. The valve materials in contact with coolant are corrosion-resistant and have passed rigorous compatibility test for safe, long-term operation.
Smart Dynamic Balancing: At its core, the integrated AB-QM Pressure Independent Control Valve (PICV) provides automatic and continuous hydronic balancing. It constantly optimizes coolant flow to match the specific needs of each rack, ensuring maximum energy efficiency with optimized Power Usage Effectiveness (PUE) and an improved Water Usage Effectiveness (WUE).
Digital Intelligence and Control: When equipped with the optional NovoCon S digital actuator, the CoolTrain becomes a smart data source in the DCIM. It provides live telemetry on flow rates and temperatures, enabling remote optimization to match actual IT loads and facilitating predictive maintenance schedules to maximize uptime.
Danfoss CoolTrain Technical Specifications Overview:
Connections: 1” | DN25 with market-leading interlockable safety couplings
Flow capacity: 2.2–22 GPM | 8.3–83 LPM (10-100% pre-setting)
Max. operating pressure: 145 psi | 10 bar
Shut-off leakage rate: ISO 5208 Class A (zero leakage)
Operating temperature: 59–149°F | 15–65°C
Factory cleanliness standard: ISO 4406
Cooling Capacity: 55 kW, supports high-density racks up to 65 kW (at ΔT=10K)
The Danfoss CoolTrain is now available for specification in data center projects. For more information, contact a Danfoss expert to level up your liquid cooling strategy.
|
