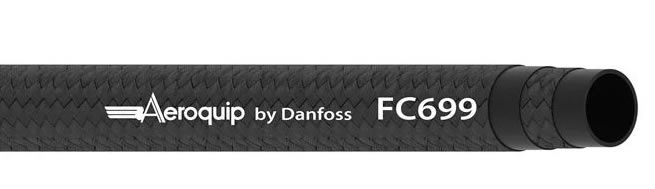

FC699 Aeroquip by Danfoss | High Temp Fuel & Oil Hose Single Wire Braid Transportation Hose
Aeroquip by Danfoss
FC699 Series | High Temp Fuel & Oil Hose Single Wire Braid Transportation Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
FC699 Aeroquip by Danfoss | High Temp Fuel & Oil Hose Single Wire Braid Transportation Hose
Specifications for Variant SKU: FC699-06 Danfoss
| Brand: |
Aeroquip |
| Series: |
FC699 Series |
| Hose Color(s): |
Black |
| Internal Diameter: |
0.38in |
| Outer Diameter: |
0.63in |
| Tubing Construction: |
AQP Elastomer |
| Cover Construction: |
Polyester Textile Braid |
Hose Properties:
Application:
Diesel fuel, gasoline, crude and lubricating oils.
Transmission oil cooler. |
SAE Ratings:
N/A |
Other Ratings:
| N/A |
Tube:
AQP Elastomer |
Reinforcement:
| Single Aramid Braid |
Cover:
Black Textile Braided |
Operating Parameters:
-40°F to +302°F (-40°C to +150°C)
Air not to exceed 250 psi or +250°F (+121°C)
Biodiesel use up to B20 and max temperature of +212°F (+100°C) |
Hose Properties:
Application:
Diesel fuel, gasoline, crude and lubricating oils.
Transmission oil cooler. |
SAE Ratings:
N/A |
Other Ratings:
| N/A |
Tube:
AQP Elastomer |
Reinforcement:
| Single Aramid Braid |
Cover:
Black Textile Braided |
Operating Parameters:
-40°F to +302°F (-40°C to +150°C)
Air not to exceed 250 psi or +250°F (+121°C)
Biodiesel use up to B20 and max temperature of +212°F (+100°C) |
| Part Number |
Hose ID |
Hose OD |
Max. Operating Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Vacuum Service |
Weight |
| DN |
mm |
in |
mm |
in |
bar |
psi |
bar |
psi |
mm |
in |
kPa |
in Hg |
kg/m |
lbs/ft |
| FC699-04 |
6 |
6,4mm |
0.25" |
12,4mm |
0.49" |
28,0 bar |
400 psi |
112,0 bar |
1600 psi |
31,8mm |
1.25" |
94,8 kPa |
28 in. Hg |
0,09 kg/m |
0.06 lbs/ft |
| FC699-06 |
10 |
9,7mm |
0.38" |
16,0mm |
0.63" |
28,0 bar |
400 psi |
112,0 bar |
1600 psi |
38,1mm |
1.50" |
94,8 kPa |
28 in. Hg |
0,15 kg/m |
0.10 lbs/ft |
| FC699-08 |
12 |
12,7mm |
0.50" |
19,6mm |
0.77" |
28,0 bar |
400 psi |
112,0 bar |
1600 psi |
50,8mm |
2.00" |
94,8 kPa |
28 in. Hg |
0,19 kg/m |
0.13 lbs/ft |
| FC699-10 |
16 |
16,0mm |
0.63" |
23,9mm |
0.94" |
24,0 bar |
350 psi |
98,0 bar |
1400 psi |
63,5mm |
2.50" |
61,0 kPa |
18 in. Hg |
0,27 kg/m |
0.18 lbs/ft |
| FC699-12 |
19 |
19,1mm |
0.75" |
27,4mm |
1.08" |
21,0 bar |
300 psi |
83,0 bar |
1200 psi |
101,6mm |
4.00" |
61,0 kPa |
18 in. Hg |
0,30 kg/m |
0.20 lbs/ft |
| FC699-16 |
25 |
25,4mm |
1.00" |
33,8mm |
1.33" |
17,0 bar |
250 psi |
70,0 bar |
1000 psi |
114,3mm |
4.50" |
61,0 kPa |
18 in. Hg |
0,41 kg/m |
0.28 lbs/ft |
